GPIO Input and Hardware Interrupts

Learning Objectives

After completing this experiment, you will be able to:

• Configure GPIO inputs with digital enable and internal pull resistors.
• Read switches via polling with software debouncing (typ. 20 ms).
• Configure edge-triggered GPIO interrupts and write minimal ISRs.
• Enable and manage interrupts in the NVIC (IRQ mapping, ISER).
• Unlock and configure protected pins (PF0/NMI) for general-purpose use.

Experiment Overview

This experiment extends GPIO functionality from outputs to inputs and introduces interrupt-driven programming on the TM4C123 microcontroller.

Building on the previous experiment's knowledge of GPIO outputs, you will now configure GPIO pins as inputs to read the state of mechanical switches. You will explore two approaches: polling (continuously checking the input state) and interrupts (responding immediately to input changes). You will also address the practical challenge of switch bouncing through software debouncing techniques.

In this experiment, you will:

• Configure GPIO pins as inputs with pull-up resistors for reading switch states.
• Implement polling-based programs that continuously monitor button presses.
• Configure GPIO edge-triggered interrupts to respond to button events.
• Write interrupt service routines to handle switch presses and toggle LEDs.
• Enable GPIO interrupts in the NVIC and manage interrupt priorities.
• Unlock protected GPIO pins (such as PF0) for use as general-purpose inputs.

By the end of this lab, you will understand how to read digital inputs, implement both polling and interrupt-driven input handling, and write responsive embedded applications that react to external events in real time.

Theoretical Background

GPIO Input Configuration

In the previous experiment, GPIO pins were configured as outputs to control LEDs. In this experiment, we configure GPIO pins as inputs to read the state of external devices such as switches, buttons, and sensors.

When a GPIO pin is configured as an input, the microcontroller reads the voltage level on the pin and interprets it as a logic '0' (low, typically 0V) or logic '1' (high, typically 3.3V). The pin's digital input buffer must be enabled, and the pin must be connected to a defined voltage level to avoid floating states.

Input Pin Requirements

For reliable digital input operation, three conditions must be met:

• Direction: The pin must be configured as an input (bit cleared in GPIODIR).
• Digital Enable: The digital input buffer must be enabled (bit set in GPIODEN).
• Defined Logic Level: The pin must be connected to a valid logic level (not floating).

If a pin is left floating (not connected to a defined voltage), it can pick up electrical noise and produce random or unstable readings. To prevent this, pins are typically connected to either power (VCC) or ground (GND) through a resistor, or the microcontroller's internal pull-up or pull-down resistors can be enabled.

Pull-Up and Pull-Down Resistors

Digital inputs must not be left floating: an undefined voltage can produce random logic reads. A pull resistor defines the idle (no-press) level of a switch input.

Pull-Up (active-low): A pull-up connects the pin weakly to VCC, so the idle level is logic 1. Pressing the switch drives the pin to GND → logic 0.

Pull-Down (active-high): A pull-down connects the pin weakly to GND, so the idle level is logic 0. Pressing the switch drives the pin to VCC → logic 1.

The TM4C123 provides internal pull-up and pull-down resistors that can be enabled through the GPIOPUR and GPIOPDR registers, eliminating the need for external resistors in most cases.

Configuration	Button Released	Button Pressed
Pull-Up (button to GND)	Pin reads '1' (high)	Pin reads '0' (low)
Pull-Down (button to VCC)	Pin reads '0' (low)	Pin reads '1' (high)

On the TM4C123 LaunchPad, SW1 (PF4) and SW2 (PF0) are wired to ground. With pull-ups enabled, these inputs are active-low: the pin reads 0 when pressed and 1 when released.

Switch Bouncing and Debouncing

When a mechanical switch or button is pressed or released, the metal contacts inside do not make or break contact cleanly. Instead, they bounce — rapidly making and breaking contact multiple times before settling into a stable state. This bouncing typically lasts 5-30 milliseconds.

For applications that poll the input at a slow rate or only care about the final state, bouncing may not be a problem. However, for interrupt-driven systems or applications that count button presses, bouncing can cause multiple false triggers.

Debouncing Techniques

Two approaches can eliminate or mitigate switch bouncing:

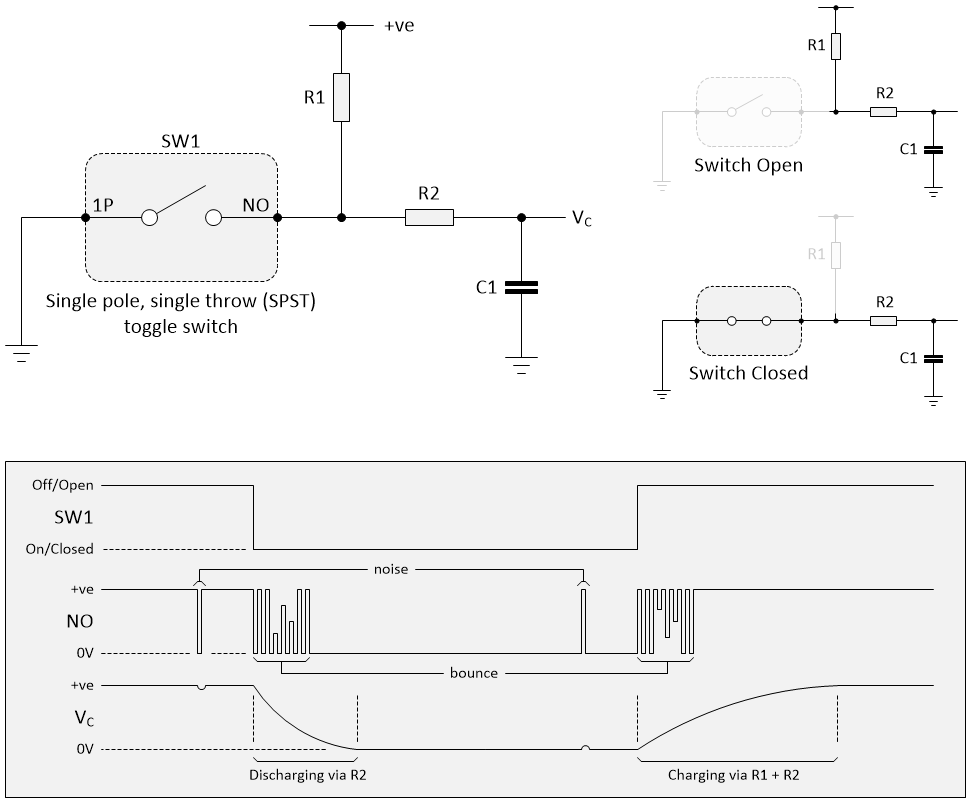

Hardware Debouncing: Add an RC (resistor-capacitor) filter circuit or a dedicated debouncing IC to the switch. The capacitor smooths out the voltage transitions, preventing bounces from reaching the microcontroller input.

Software Debouncing: After detecting a button press (or release), wait for a short period (typically 10-50 ms) to allow the bouncing to settle, then read the input again to confirm the state. This can be implemented with:

• Blocking delay debouncing: Insert a fixed delay (busy-wait loop) after detecting an edge, then verify the input state. This is simple but prevents the CPU from doing other work during the delay period.
• Timer-based debouncing (non-blocking): Use a hardware timer to sample the input periodically without blocking the main program. Only register a press after multiple consistent readings across timer intervals.

For this experiment, we will implement simple delay-based debouncing in our polling examples. More sophisticated timer-based debouncing techniques will be covered in the following experiment.

Reading GPIO Inputs: Polling vs. Interrupts

There are two fundamental approaches to reading digital inputs:

Polling (Continuous Checking)

In polling, the CPU continuously reads the input pin in a loop and checks whether the state has changed. This is simple to implement but has drawbacks:

• CPU Usage: The CPU is busy checking the input even when nothing is happening.
• Latency: The response time depends on how frequently the loop runs.
• Power Consumption: The CPU cannot enter low-power sleep modes while polling.

Polling is suitable for simple applications where the CPU has nothing else to do or when inputs change slowly.

while (1) {
    if (button is pressed) {
        // Respond to button press
    }
}

Interrupts (Event-Driven Response)

In interrupt-driven input, the GPIO peripheral notifies the CPU when an input change occurs by generating an interrupt request (IRQ). The CPU immediately stops its current task, executes an Interrupt Service Routine (ISR), and then resumes normal operation.

• Efficiency: The CPU can do other work or sleep until an input event occurs.
• Responsiveness: The CPU reacts immediately to input changes.
• Power Efficiency: The CPU can remain in low-power modes and wake only when needed.

Interrupts are essential for responsive embedded systems and are the preferred method for handling asynchronous events.

// Main loop can perform other tasks
while (1) {
    // Do other work or sleep
}

// ISR is called automatically when button is pressed
void ButtonISR(void) {
    // Respond to button press
    // Clear interrupt flag
}

How Interrupts Work

Understanding the interrupt mechanism is essential for writing interrupt-driven programs. This section explains the complete lifecycle of an interrupt from trigger to completion.

Interrupt Lifecycle

When a GPIO pin configured for interrupts detects the specified event (e.g., a button press), the following sequence occurs:

1. Event Detection: The GPIO peripheral continuously monitors the pin according to its configuration (edge/level detection). When the configured condition is met (e.g., falling edge), the peripheral sets an internal flag.

2. Interrupt Request (IRQ): If the interrupt is unmasked (enabled in GPIOIM), the GPIO module sends an interrupt request to the NVIC. The NVIC receives interrupt requests from all peripherals and manages their execution.

3. CPU Response: The NVIC checks if the interrupt is enabled (NVIC_ISER) and compares its priority with currently executing code. If the interrupt should be serviced:

• The CPU finishes executing the current instruction.
• The CPU automatically saves the current execution context (program counter, registers, status flags) onto the stack.
• The CPU loads the address of the Interrupt Service Routine (ISR) from the vector table.
• Execution jumps to the ISR.

4. ISR Execution: The ISR (e.g., GPIOF_Handler()) executes and must:

• Identify which pin(s) caused the interrupt (read GPIOMIS).
• Perform the required response (toggle LED, set flag, etc.).
• Clear the interrupt flag (write to GPIOICR) — critical step.

5. Return from Interrupt: When the ISR completes (returns), the CPU:

• Automatically restores the saved context from the stack.
• Resumes execution from where it was interrupted.

This entire process happens in microseconds, making interrupts extremely responsive.

Why Clear the Interrupt Flag?

The interrupt flag remains set until explicitly cleared by software. If the ISR does not clear the flag by writing to GPIOICR, the NVIC will immediately re-trigger the interrupt as soon as the ISR returns, creating an infinite loop of interrupts that hangs the system.

void GPIOF_Handler(void) {
    // Read which pin caused interrupt
    if (GPIOF->MIS & (1 << 4)) {
        // Handle PF4 interrupt
        // ...

        GPIOF->ICR |= (1 << 4);  // MUST clear flag!
    }
}

Interrupt Advantages and Considerations

Advantages:

• Efficient: CPU can perform other tasks or sleep while waiting for events.
• Responsive: Immediate response to external events (microsecond latency).
• Power-efficient: CPU can remain in low-power modes between events.
• Real-time: Predictable timing for critical events.

Considerations:

• Complexity: More complex to implement and debug than polling.
• Shared data: ISRs and main code must carefully manage shared variables (use volatile).
• ISR constraints: ISRs should be short and fast — avoid delays and lengthy operations.
• Debouncing: Mechanical switch bouncing can trigger multiple interrupts; software or hardware debouncing is often necessary.

GPIO Input Configuration Registers

Before a GPIO pin can be used as an input, it must be properly configured. This section describes the registers used to configure GPIO pins as inputs with pull-up or pull-down resistors.

GPIOPUR — Pull-Up Resistor Enable

Register: GPIOPUR — GPIO Pull-Up Select (Port F: 0x40025510)

The GPIOPUR register enables the internal pull-up resistor for each GPIO pin. When enabled, the pin is weakly pulled to logic '1' (3.3V) through a resistor (typically 13-40 kΩ). This prevents floating inputs and is essential for switches connected to ground.

GPIOPUR Register Layout (Port F):

Bit 31-8	Bit 7	Bit 6	Bit 5	Bit 4	Bit 3	Bit 2	Bit 1	Bit 0
Reserved	PF7	PF6	PF5	PF4	PF3	PF2	PF1	PF0

Bit Values:

• 0: Pull-up disabled (default)
• 1: Pull-up enabled

For the LaunchPad switches (SW1 on PF4, SW2 on PF0), pull-ups must be enabled.

GPIOPDR — Pull-Down Resistor Enable

Register: GPIOPDR — GPIO Pull-Down Select (Port F: 0x40025514)

The GPIOPDR register enables the internal pull-down resistor for each GPIO pin. When enabled, the pin is weakly pulled to logic '0' (0V) through a resistor. This is used for switches connected to power (VCC).

GPIOPDR Register Layout (Port F):

Bit 31-8	Bit 7	Bit 6	Bit 5	Bit 4	Bit 3	Bit 2	Bit 1	Bit 0
Reserved	PF7	PF6	PF5	PF4	PF3	PF2	PF1	PF0

Bit Values:

• 0: Pull-down disabled (default)
• 1: Pull-down enabled

Note: Pull-up and pull-down resistors should not be enabled simultaneously on the same pin.

Unlocking Protected GPIO Pins

Some GPIO pins on the TM4C123 are locked by default to prevent accidental reconfiguration of critical functions such as JTAG/SWD (debug interface) and NMI (Non-Maskable Interrupt).

On Port F, pin PF0 is locked because it is the NMI input by default. To use PF0 as a general-purpose GPIO input (for SW2 on the LaunchPad), it must be unlocked.

GPIOLOCK — Lock Register

Register: GPIOLOCK — GPIO Lock (Port F: 0x40025520)

The GPIOLOCK register controls write access to the GPIOCR register. Writing the magic value 0x4C4F434B ("LOCK" in ASCII) unlocks the port and allows modifications to the commit register.

Values:

• Write 0x4C4F434B: Unlock the port (allow changes to GPIOCR)
• Write any other value: Lock the port (prevent changes to GPIOCR)
• Read: Returns 0x00000001 if locked, 0x00000000 if unlocked

GPIOCR — Commit Register

Register: GPIOCR — GPIO Commit (Port F: 0x40025524)

The GPIOCR register controls which pins can be reconfigured. After unlocking with GPIOLOCK, set the corresponding bit in GPIOCR to allow changes to that pin's configuration registers.

GPIOCR Register Layout (Port F):

Bit 31-8	Bit 7	Bit 6	Bit 5	Bit 4	Bit 3	Bit 2	Bit 1	Bit 0
Reserved	PF7	PF6	PF5	PF4	PF3	PF2	PF1	PF0

Bit Values:

• 0: Pin configuration is locked (cannot be modified)
• 1: Pin configuration is unlocked (can be modified)

Unlocking Procedure

To unlock a protected pin (such as PF0):

1. Write the unlock key 0x4C4F434B to the GPIOLOCK register.
2. Set the corresponding bit in the GPIOCR (Commit Register) to allow changes.
3. Configure the pin normally (GPIODIR, GPIODEN, etc.).

GPIOF->LOCK = 0x4C4F434B;    // Unlock Port F
GPIOF->CR   |= (1 << 0);     // Allow changes to PF0

After unlocking, PF0 can be configured like any other GPIO pin.

GPIO Interrupt Configuration Registers

To configure a GPIO pin to generate interrupts, several registers must be configured. The process involves selecting the trigger condition (edge or level, rising or falling) and enabling the interrupt at both the GPIO module and the NVIC.

GPIOIS — Interrupt Sense Register

Register: GPIOIS — GPIO Interrupt Sense (Port F: 0x40025404)

The GPIOIS register determines whether interrupts are triggered by signal edges (transitions) or levels (steady states).

GPIOIS Register Layout (Port F):

Bit 31-8	Bit 7	Bit 6	Bit 5	Bit 4	Bit 3	Bit 2	Bit 1	Bit 0
Reserved	PF7	PF6	PF5	PF4	PF3	PF2	PF1	PF0

Bit Values:

• 0: Edge-sensitive (detects transitions) — typical for buttons
• 1: Level-sensitive (detects steady state)

GPIOIBE — Interrupt Both Edges Register

Register: GPIOIBE — GPIO Interrupt Both Edges (Port F: 0x40025408)

When edge-sensitive mode is selected (bit cleared in GPIOIS), this register determines whether interrupts occur on a single edge or both edges.

GPIOIBE Register Layout (Port F):

Bit 31-8	Bit 7	Bit 6	Bit 5	Bit 4	Bit 3	Bit 2	Bit 1	Bit 0
Reserved	PF7	PF6	PF5	PF4	PF3	PF2	PF1	PF0

Bit Values:

• 0: Single edge (rising or falling, defined by GPIOIEV)
• 1: Both rising and falling edges trigger interrupts

GPIOIEV — Interrupt Event Register

Register: GPIOIEV — GPIO Interrupt Event (Port F: 0x4002540C)

For single-edge interrupts (when the corresponding bit in GPIOIBE is 0), this register selects which edge triggers the interrupt.

GPIOIEV Register Layout (Port F):

Bit 31-8	Bit 7	Bit 6	Bit 5	Bit 4	Bit 3	Bit 2	Bit 1	Bit 0
Reserved	PF7	PF6	PF5	PF4	PF3	PF2	PF1	PF0

Bit Values:

• 0: Falling edge (high-to-low transition)
• 1: Rising edge (low-to-high transition)

For switches with pull-ups (LaunchPad SW1/SW2), falling edge interrupts detect button presses.

GPIOIM — Interrupt Mask Register

Register: GPIOIM — GPIO Interrupt Mask (Port F: 0x40025410)

The GPIOIM register enables or disables (masks/unmasks) interrupt generation for each pin. Setting a bit to '1' allows that pin to generate interrupts.

GPIOIM Register Layout (Port F):

Bit 31-8	Bit 7	Bit 6	Bit 5	Bit 4	Bit 3	Bit 2	Bit 1	Bit 0
Reserved	PF7	PF6	PF5	PF4	PF3	PF2	PF1	PF0

Bit Values:

• 0: Interrupt disabled (masked) — default
• 1: Interrupt enabled (unmasked)

GPIOMIS — Masked Interrupt Status Register

Register: GPIOMIS — GPIO Masked Interrupt Status (Port F: 0x40025418)

This read-only register shows which pins have pending interrupts after masking. The ISR reads this register to determine which pin(s) caused the interrupt.

GPIOMIS Register Layout (Port F):

Bit 31-8	Bit 7	Bit 6	Bit 5	Bit 4	Bit 3	Bit 2	Bit 1	Bit 0
Reserved	PF7	PF6	PF5	PF4	PF3	PF2	PF1	PF0

Bit Values:

• 0: No interrupt pending for this pin
• 1: Interrupt pending for this pin

GPIOICR — Interrupt Clear Register

Register: GPIOICR — GPIO Interrupt Clear (Port F: 0x4002541C)

Writing '1' to a bit in this register clears the corresponding interrupt flag. This is critical: the ISR must clear the flag, or the interrupt will continuously re-trigger.

GPIOICR Register Layout (Port F):

Bit 31-8	Bit 7	Bit 6	Bit 5	Bit 4	Bit 3	Bit 2	Bit 1	Bit 0
Reserved	PF7	PF6	PF5	PF4	PF3	PF2	PF1	PF0

Bit Values:

• Write 1 to clear the interrupt flag for that pin
• Write 0 has no effect

Configuration Workflow

GPIO interrupt configuration is divided into two parts: configuring the pin as an input and configuring the interrupt settings. The following steps summarize the process:

Step 1: Pin Configuration

Configure the GPIO pin as an input with proper electrical characteristics:

1. Enable the GPIO port clock (RCGCGPIO).
2. Unlock protected pins if needed (GPIOLOCK, GPIOCR).
3. Configure the pin as input (GPIODIR = 0).
4. Enable the digital function (GPIODEN = 1).
5. Enable pull-up or pull-down resistor (GPIOPUR or GPIOPDR).

Step 2: Interrupt Configuration

Configure the interrupt trigger conditions and enable interrupt generation:

1. Configure interrupt sense (GPIOIS = 0 for edge-sensitive).
2. Select edge(s) (GPIOIBE/GPIOIEV).
3. Clear any prior flags (GPIOICR = 1 for the pin).
4. Unmask the pin in the GPIO (GPIOIM = 1).
5. Enable the IRQ in the NVIC.

NVIC — Nested Vectored Interrupt Controller

The NVIC manages all peripheral interrupts on the Cortex-M4, deciding which ISR to execute based on enable bits, masking, and priority.

NVIC_ISER — Interrupt Set-Enable Registers

Registers: NVIC_ISER[0..3] (0xE000E100-0xE000E10C)

Each 32-bit ISER register enables up to 32 interrupt sources. Writing a '1' to a bit enables that IRQ; writing '0' has no effect.

Register	IRQ Range	Address
ISER[0]	0-31	0xE000E100
ISER[1]	32-63	0xE000E104
ISER[2]	64-95	0xE000E108
ISER[3]	96-127	0xE000E10C

For the TM4C123, all GPIO interrupts (IRQ0-IRQ4) for Ports A-E, and Port F (IRQ30) are in ISER[0].

Example — Enabling Port F Manually:

NVIC->ISER[0] |= (1 << 30);   // IRQ30 - NVIC_EN0 bit 30

CMSIS Alternative (Recommended):

NVIC_EnableIRQ(GPIOF_IRQn);

This function automatically computes the correct register and bit:

void NVIC_EnableIRQ(IRQn_Type IRQn) {
    if (IRQn >= 0)
        NVIC->ISER[IRQn >> 5] |= (1u << (IRQn & 0x1F)); // /32 and %32
}

Each ISER register enables 32 interrupts. Dividing the IRQ number by 32 selects the correct register index, and the remainder (IRQn % 32) identifies the bit position within that 32-bit register.

Interrupt Service Routine (ISR)

When a GPIO interrupt occurs, the NVIC calls the corresponding ISR. For GPIO Port F, the ISR is named GPIOF_Handler(). The ISR must:

1. Determine which pin caused the interrupt (read GPIOMIS).
2. Perform the required action (e.g., toggle an LED).
3. Clear the interrupt flag (write to GPIOICR).

void GPIOF_Handler(void) {
    if (GPIOF->MIS & (1 << 4)) {     // Check if PF4 caused interrupt
        // Respond to SW1 press
        GPIOF->ICR |= (1 << 4);      // Clear PF4 interrupt flag
    }
    if (GPIOF->MIS & (1 << 0)) {     // Check if PF0 caused interrupt
        // Respond to SW2 press
        GPIOF->ICR |= (1 << 0);      // Clear PF0 interrupt flag
    }
}

Procedure

Examples

The following examples demonstrate GPIO input configuration using polling and interrupt-based approaches.

Example 1 — Reading Switch Input Using Polling

This example continuously polls the state of SW1 (PF4) and turns on the red LED (PF1) when the button is pressed.

#include "TM4C123.h"

#define RED_LED 0x02
#define SWITCH 0x10

int main(void) {
    unsigned int state;
    SYSCTL->RCGCGPIO |= (1<<5); 			// Enable Port F
    GPIOF->PUR |= SWITCH;                   // Enable pull-up resistor on PF4
    GPIOF->DIR |= RED_LED;                  // Set PF1 as an output pin and PF4 as an input pin
    GPIOF->DEN |= (RED_LED | SWITCH);       // Enable PF1 and PF4 as a digital GPIO pins
    while(1) {
        state = GPIOF->DATA & SWITCH;       // Read the state of the switch
        if (state == 0) {                   // If the switch is pressed (since it's Pull-up)
            GPIOF->DATA |= RED_LED;         // Turn on the LED
        } else {                            // If the switch is not pressed
            GPIOF->DATA &= ~RED_LED;        // Turn off the LED
        }
    }
}

Explanation:

• GPIOF->PUR |= SWITCH; enables the internal pull-up resistor on PF4.
• The while(1) loop continuously reads the switch state.
• When state == 0, the button is pressed (pull-up makes it active-low).
• The LED is controlled directly in the main loop without interrupts.

Example 2 — Interrupt-Driven Switch Input

This example configures SW1 and SW2 to generate interrupts on button presses and toggles the green LED in the ISR.

#include "TM4C123.h"

#define GREEN_LED 0x08
#define SW1 0x10
#define SW2 0x01

int main(void)
{
    SYSCTL->RCGCGPIO |= (1<<5);             // Enable clock to GPIOF

    GPIOF->LOCK = 0x4C4F434B;               // unlock commit register
    GPIOF->CR = 0x01;                       // make PORTF0 configurable


    // PINS Configurations
    GPIOF->DIR &= ~(SW1 | SW2);             // Set SW1, SW2 as input pins
    GPIOF->DIR |= GREEN_LED;                // Set GREEN_LED as output pin

    GPIOF->DEN |= (GREEN_LED | SW1 | SW2);  // Enable digital function for GREEN_LED, SW1, SW2
    GPIOF->PUR |= (SW1 | SW2);              // Enable pull-up resistors on SW1, SW2

    // Interrupt Configurations
    GPIOF->IS  &= ~(SW1 | SW2);             // SW1, SW2 are edge-sensitive
    GPIOF->IBE &= ~(SW1 | SW2);             // SW1, SW2 are not both edges
    GPIOF->IEV &= ~(SW1 | SW2);             // falling edge trigger
    GPIOF->ICR |= (SW1 | SW2);              // clear any prior interrupt
    GPIOF->IM  |= (SW1 | SW2);              // unmask interrupt

    // Enable Interrupts
    NVIC->ISER[0] |= (1<<30);       				// enable interrupt 30 in NVIC
    // NVIC_EnableIRQ(GPIOF_IRQn);  				// Alternative way using CMSIS function
    while(1)
    {
    }
}

void GPIOF_Handler(void) {
    if (GPIOF->MIS & SW1) {                 // check if interrupt causes by PF4/SW1
        GPIOF->DATA |= GREEN_LED;           // turn on green LED
        GPIOF->ICR |= SW1;                  // clear the interrupt flag
    }
    else if (GPIOF->MIS & SW2) {            // check if interrupt causes by PF0/SW2
        GPIOF->DATA &= ~GREEN_LED;          // turn off green LED
        GPIOF->ICR |= SW2;                  // clear the interrupt flag
    }
}

Explanation:

• GPIOF->LOCK = 0x4C4F434B; unlocks Port F for PF0 configuration.
• GPIOF->CR = 0x01; allows changes to PF0.
• GPIOF->IS &= ~(SW1 | SW2); configures edge-sensitive interrupts.
• GPIOF->IEV &= ~(SW1 | SW2); selects falling-edge trigger (button press).
• GPIOF->ICR |= (SW1 | SW2); clears any prior interrupt flags before enabling.
• GPIOF->IM |= (SW1 | SW2); unmasks (enables) interrupts for SW1 and SW2.
• NVIC->ISER[0] |= (1<<30); enables GPIO Port F interrupt in NVIC.
• The ISR checks GPIOF->MIS to identify which switch caused the interrupt.
• Each interrupt flag must be cleared with GPIOF->ICR to prevent re-triggering.

Tasks

Task 1 — Toggle LED Using Polling

Modify Example 1 to toggle the green LED (PF3) with each press of SW1 (PF4). The LED should change state (ON→OFF or OFF→ON) every time the button is pressed and released.

Requirements:

• Use polling to detect button presses.
• Implement software debouncing by adding a delay after detecting a press.
• Toggle the LED state instead of simply turning it on or off.
• Ensure the LED changes state only once per button press.

Task 2 — LED Sequence Using Interrupts

Modify Example 2 to cycle through LED colors using interrupts:

• Pressing SW1 (PF4) cycles through: Red → Blue → Green → Red...
• Pressing SW2 (PF0) cycles through: Yellow → Magenta → Cyan → Yellow...

Requirements:

• Use interrupt-driven input handling.
• Maintain separate state variables for each button's LED sequence.
• Update the LED color in the ISR based on the current state.
• Clear interrupt flags properly to avoid repeated triggering.

Hint: Use a global variable (e.g., sw1_state) to track the current position in the sequence. In the ISR, increment the state and use a switch-case or modulo operation to cycle through colors. Refer to the LED color table in Experiment 4 for LED color codes.
